Understanding hoop sizes and embroidery areas is essential for successful machine embroidery. This guide explains how hoop dimensions work, why designs don’t always fit as expected, and how to choose the right format.

What Is Hoop Size?

The hoop size refers to the physical frame used in your embroidery machine. However, the usable stitching area is always smaller than the hoop itself.

• 4" x 4" – embroidery area approx. 3.9" x 3.9"
• 5" x 7" – embroidery area approx. 4.9" x 6.9"
• 8" x 12" – embroidery area approx. 7.9" x 11.8"
• 10" x 16" – embroidery area approx. 9.8" x 15.7"

Important:

You cannot stitch edge-to-edge inside a hoop. Machines require margins, so the actual embroidery field is always smaller.

Why Designs Don’t Fit the Hoop

If a 4" design doesn’t fit into a 4x4 hoop, it’s not a mistake. This happens because:

• Embroidery area is smaller than the hoop size
• Safety margins are required by the machine
• Different measurement systems (mm vs inches)

For example, a 6x10 hoop is actually about 160 x 260 mm (≈ 6.3" x 10.2"). :contentReference[oaicite:0]{index=0}

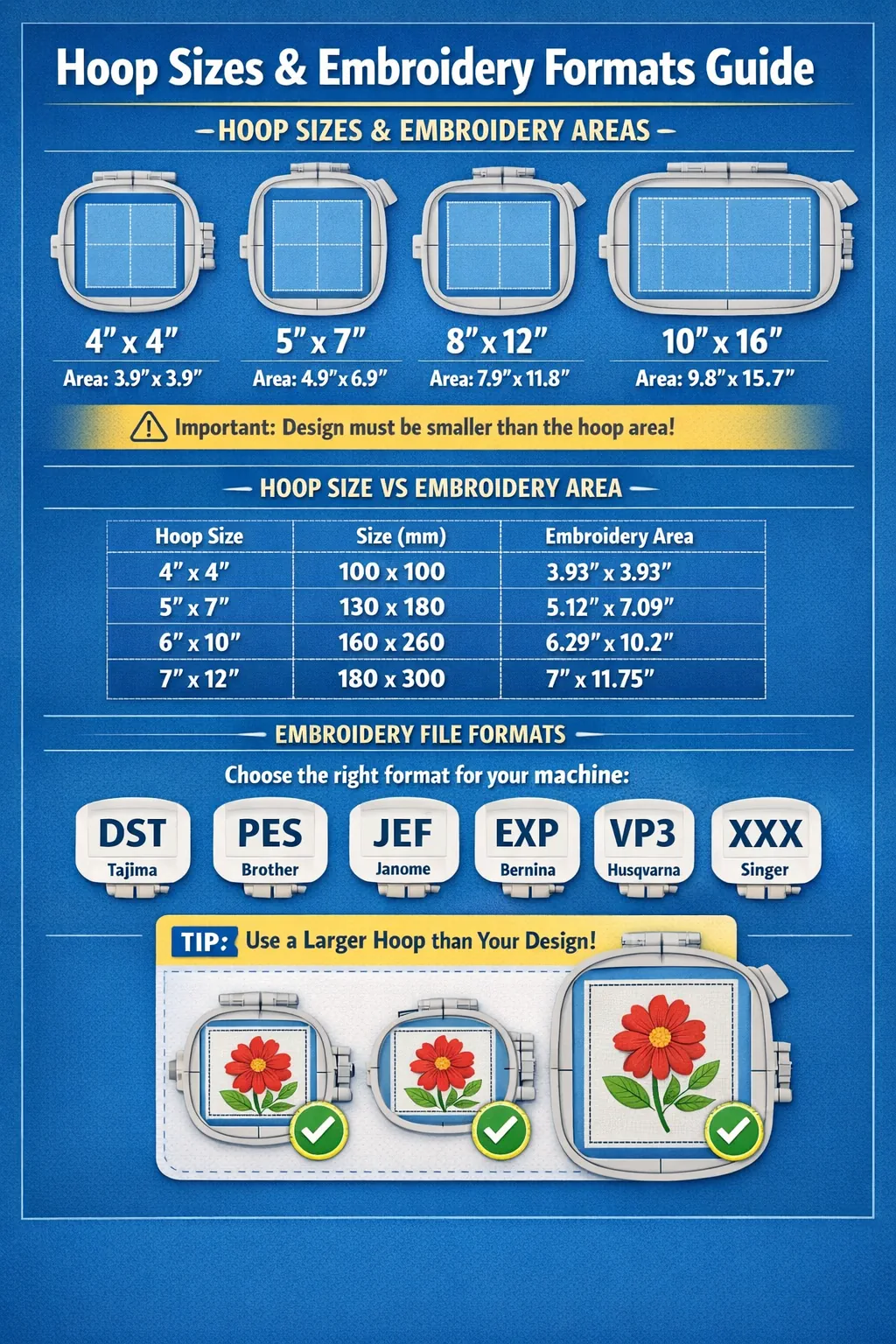

Hoop Size vs Embroidery Area Table

How to Choose the Right Hoop

• Use a hoop larger than your design
• Never try to fit a design into a smaller hoop
• Larger hoops give more flexibility but less stability

Tip: A 4" design requires at least a 5x7 hoop for safe stitching.

What Is an Embroidery File Format?

Machine embroidery designs come in different formats depending on your machine brand.

• DST – Tajima, some Brother, Janome, Pfaff
• PES – Brother, Baby Lock
• JEF – Janome
• EXP – Bernina
• VP3 – Husqvarna
• XXX – Singer

How to Choose the Right Format

Check your machine brand and download the matching format. Most embroidery shops provide multiple formats for each design.

Final Tips

• Always check the embroidery area, not hoop size
• Leave space around your design
• Match the correct format to your machine

With the right hoop and format, your embroidery results will be accurate and professional.
